Hex Bar Stock Ball Valves

BR Series

Hex Bar Stock Ball Valves

BR Series

Features

◉ Working pressure up to 1000 psig (69.0 bar)
◉ Working temperature: -20°F to 450°F (-28°C to 232°C)
◉ Compact and economical ball valve designed for industrial applications
◉ Blowout-proof stem minimizes the risk of valve failure due to stem
displacement or loosening
◉ Free-floating ball design allows the ball to be pushed against the seat by
fluid pressure, ensuring a tight and reliable seal
◉ Bidirectional flow
◉ Low-torque handle enables easy and smooth operation
◉ A variety of end connections available
◉ Handle color options available
◉ Each valve is tested for internal and external leakage using nitrogen or
compressed air at rated working pressure before shipment

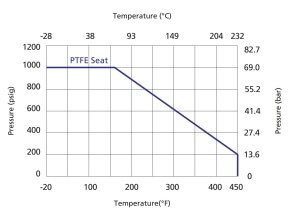

Pressure vs. Temperature

Dimensions

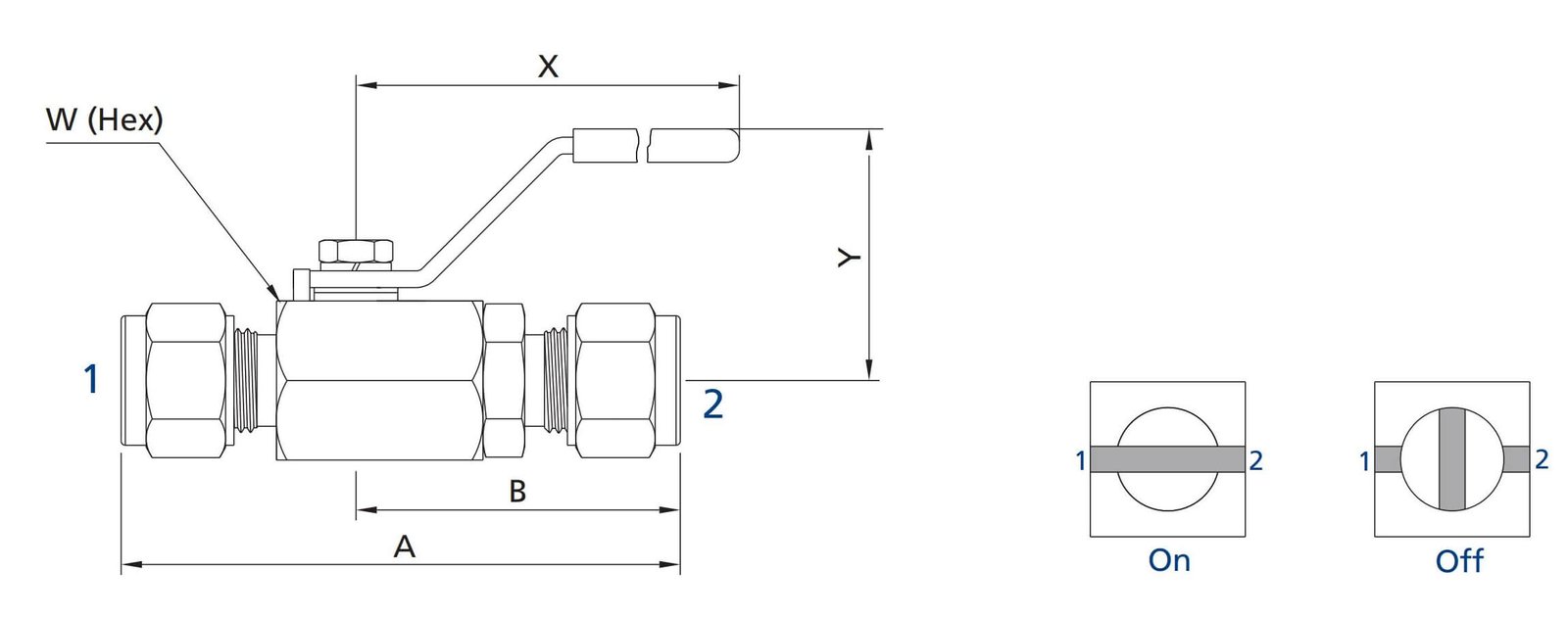

Bar Stock Body

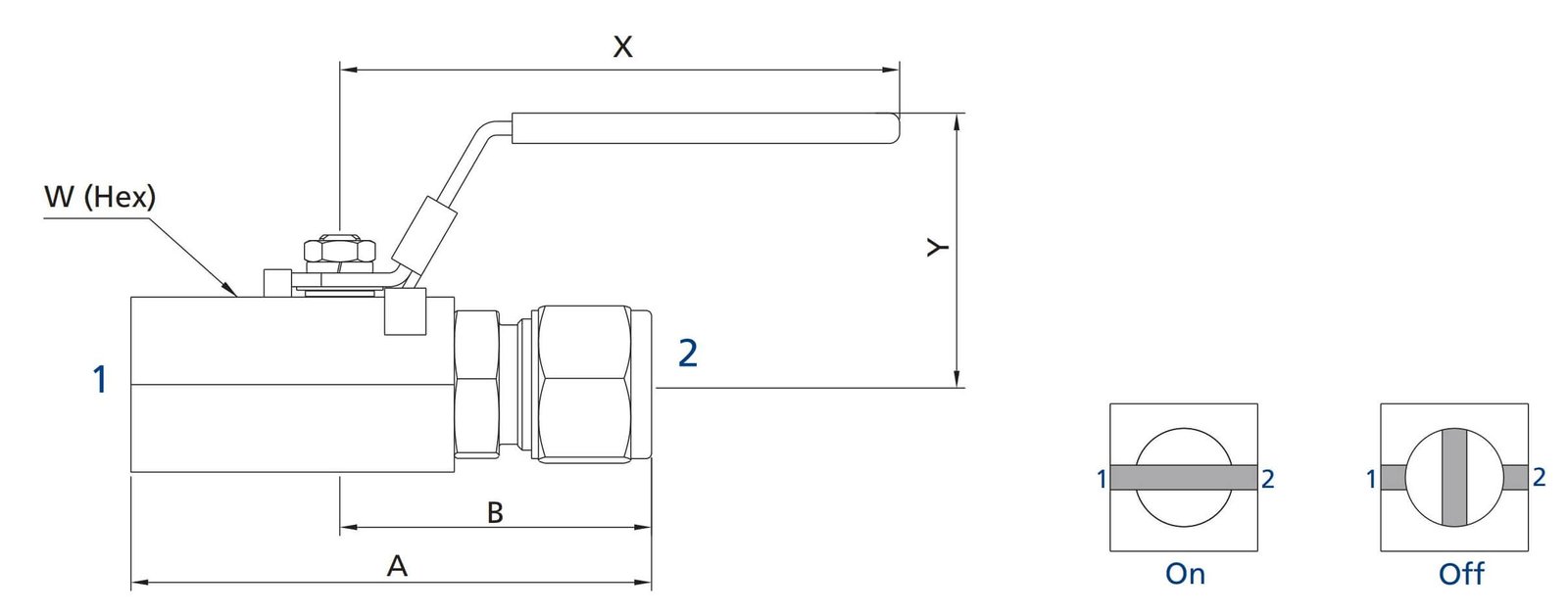

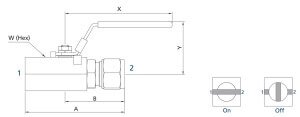

Cast Body
