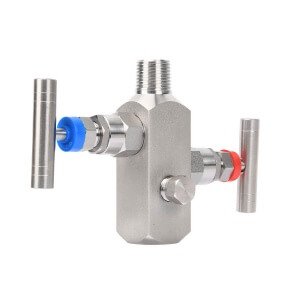

Manifolds — Two-Valve Manifolds
Valves available with these specifications:
- 1/4 and 3/4 in. (12 mm)
- –65°F (–53°C) to 1200°F (648°C)
- 316 stainless steel
- 1715 psig (118 bar) to 6000 psig (413 bar)
- Two valve
| Basic Ordering Number | Process | Instrument | Vent |
|---|---|---|---|
| 2RSS-FNS8-NS8-H | 1/2 Female NPT | 1/2 Male NPT | 1/4 Female NPT |
| 2RHSS-FNS8-NS8-H | 1/2 Female NPT | 1/2 Male NPT | 1/4 Female NPT |
| 2RSS-NS8-H | 1/2 Male NPT | 1/2 Male NPT | 1/4 Female NPT |
| 2RHOSS-NS8-H | 1/2 Male NPT | 1/2 Male NPT | 1/4 Female NPT |
| 2RSS-NS8-H-P | 1/2 Male NPT | 1/2 Male NPT | 1/4 Female NPT with plug |

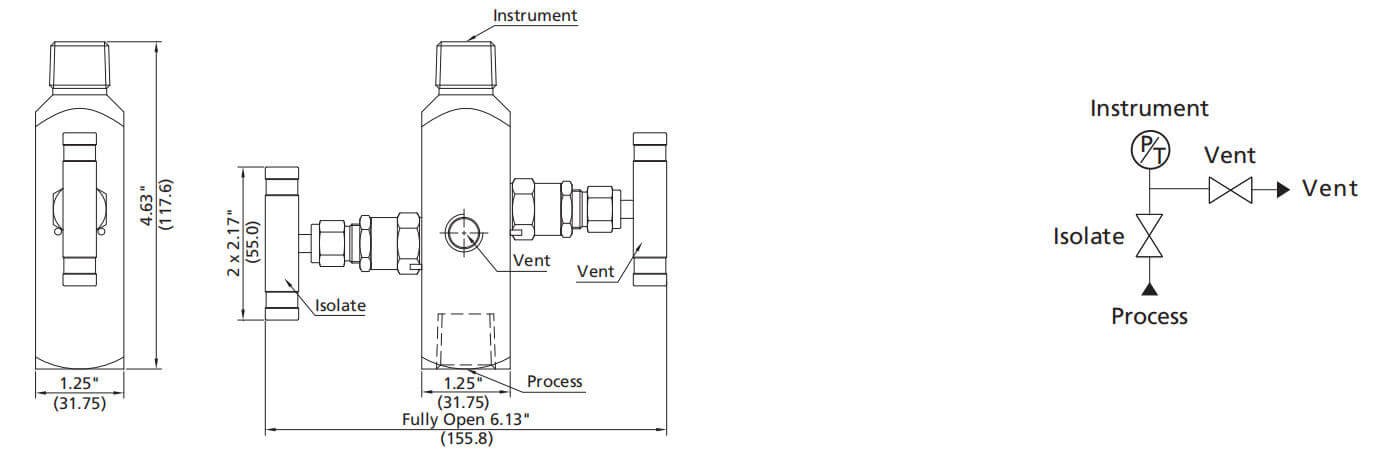

2RSS-FNS8-NS8-H
The dimensions shown are for 2R series manifolds. If you need the dimensions of 2RH series, please contact us.
