In-Line Filters
Introduction
In-Line Filters are compactly designed to trap particle contaminants in gas or liquid service in a limited space. Filter elements are available in multiple filtration accuracies to meet the filtration needs of various pipelines.
Features
◎ Filtration area type: 2, 4 and 8
◎ Compact and space-saving design
◎ Working pressure up to 3000 psig (207 bar)
◎ Working temperature: -20°F to 900°F (-28°C to 482°C)
◎ Variety of end connections available

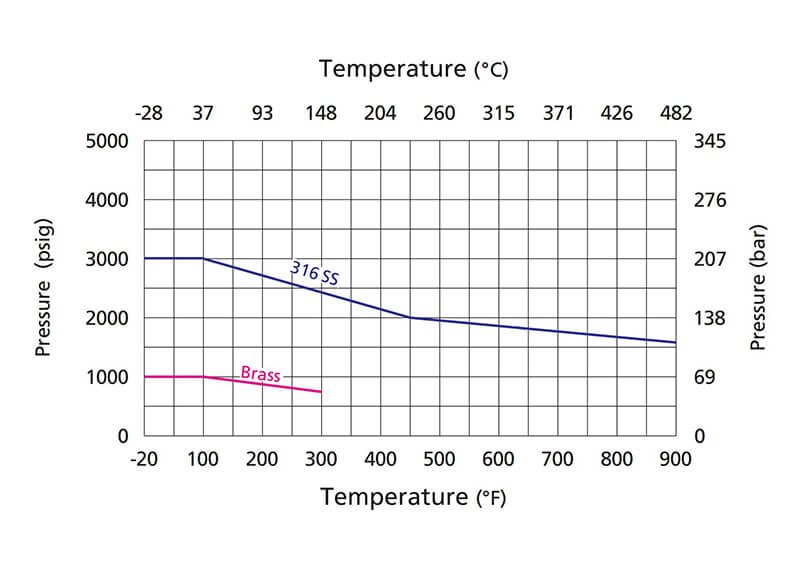

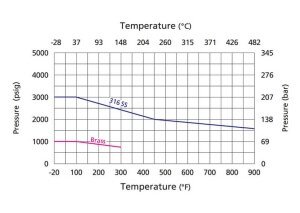

Pressure vs. Temperature
Filter Elements

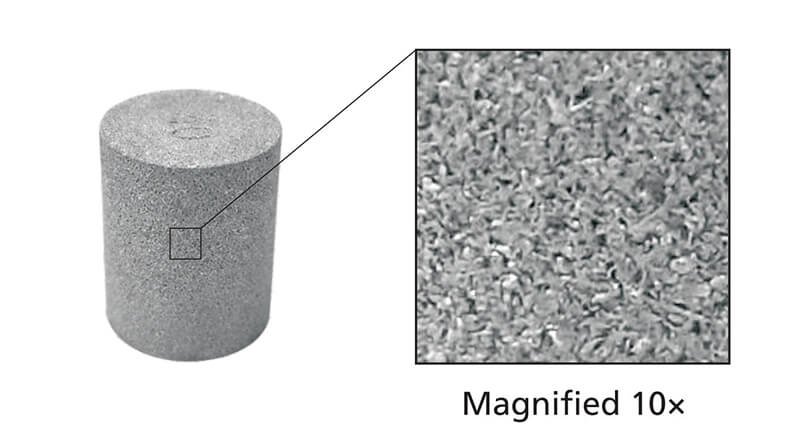

Sintered
- 316 SS powder metallurgy
- Irregular pores to trap impurity ions with smaller diameters

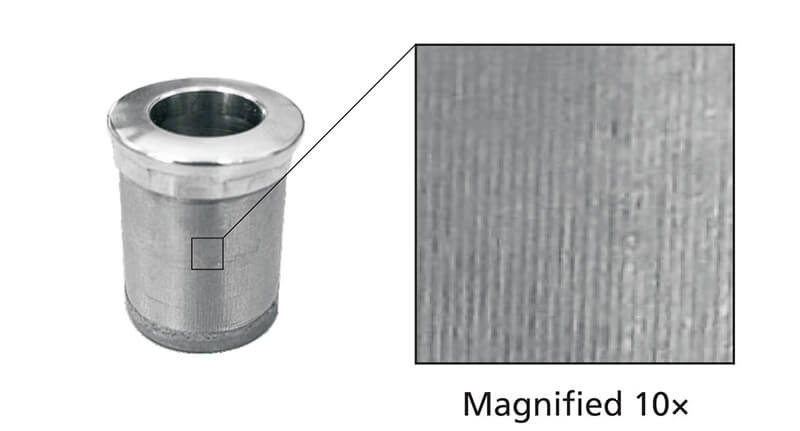

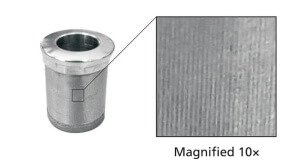

Strainer
- 316 SS wire mesh
- Uniform mesh pores to trap impurity ions with larger diameters

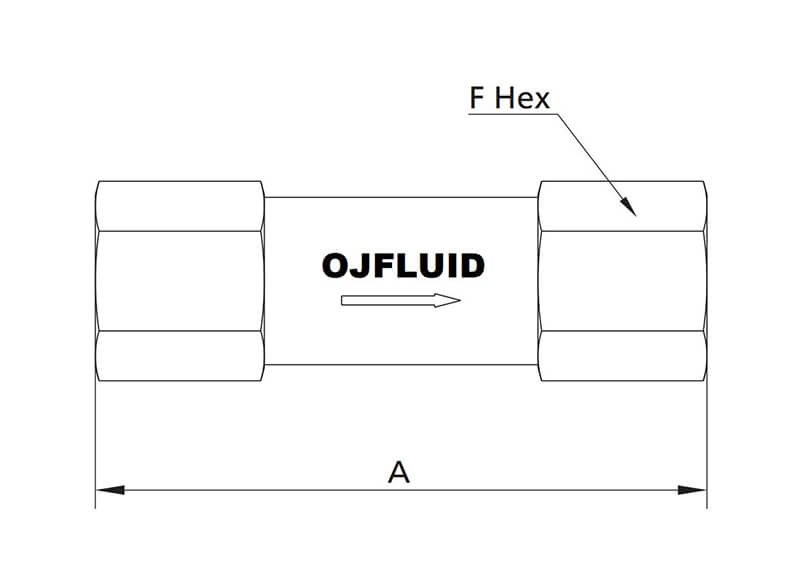

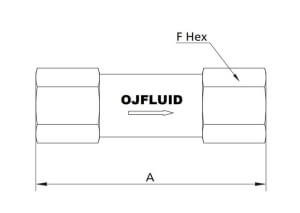

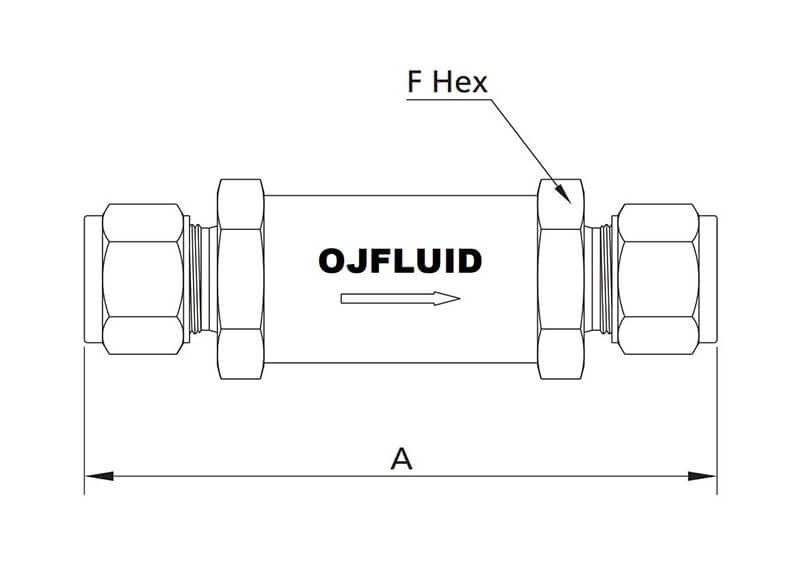

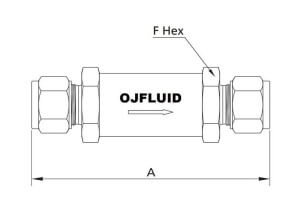

Dimensions
Introduction
In-Line Filters are compactly designed to trap particle contaminants in gas or liquid service in a limited space. Filter elements are available in multiple filtration accuracies to meet the filtration needs of various pipelines.
Features
- Filtration area type: 2, 4 and 8
- Compact and space-saving design
- Working pressure up to 3000 psig (207 bar)
- Working temperature: -20°F to 900°F (-28°C to 482°C)
- Variety of end connections available
Pressure vs. Temperature
Filter Elements
Sintered
- 316 SS powder metallurgy
- Irregular pores to trap impurity ions with smaller diameters
Strainer
- 316 SS wire mesh
- Uniform mesh pores to trap impurity ions with larger diameters
Dimensions
